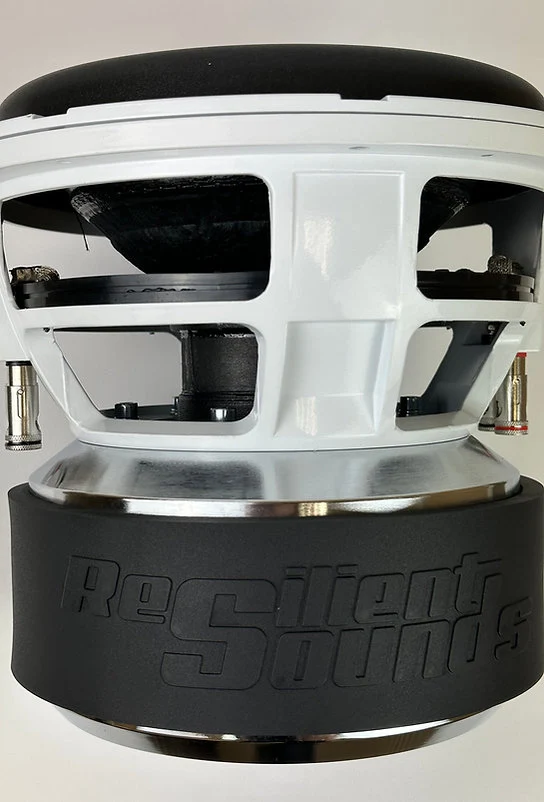

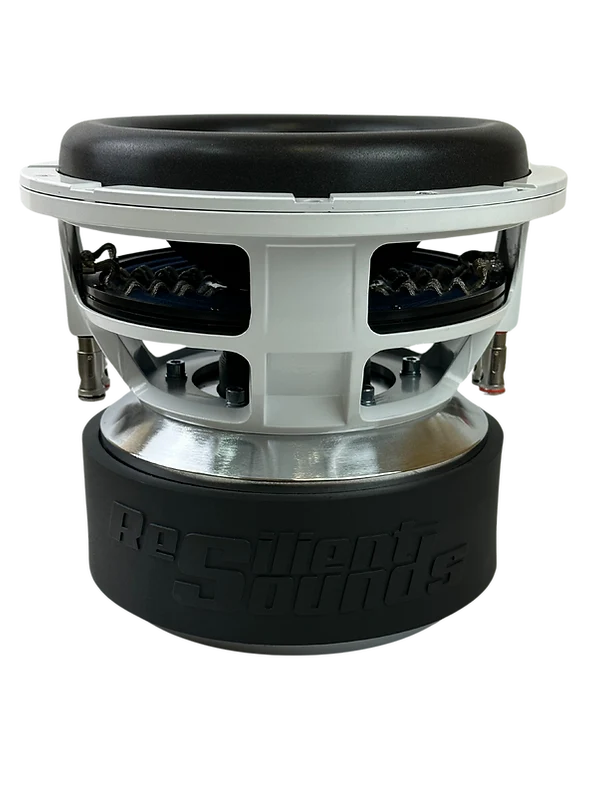

RESILIENT SOUNDS GOLD V2 10" DUAL 4 OHM (D4) SUBWOOFER

Unrivaled Power Density in a 10-Inch Frame

The Resilient Sounds GOLD V2 10" D4 subwoofer is a compact powerhouse, packing the high-performance features of the GOLD V2 line into a 10-inch format that excels in tight spaces. Conservatively rated at 1500W RMS, it is built for extreme output, featuring an immense 31mm of XMAX and a powerful, triple-stacked 220mm motor structure. The Dual 4 Ohm voice coil is perfect for common wiring configurations, allowing users to easily achieve a 2 Ohm or 8 Ohm final load. Utilizing a high-roll surround, 8.5-inch spider pack, and a rugged cast aluminum frame, this 10-inch woofer is designed to deliver authoritative, precise bass that belies its size.



TECHNICAL SPECIFICATIONS

Specification	Detail
Model	Gold V2 10"
Nominal Impedance	Dual 4 Ohm (D4)
RMS Power Handling (Conservative)	1500 Watts
Maximum Excursion (XMAX)	31MM
Voice Coil	3-inch 4 Layer (25% Longer than V1)
Motor Structure	Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot, Aluminum Shorting Ring
Surround / Spider	NEW High Roll Tooled Surround, 8.5" Spider Pack with Dual Sewn Leads
Frame/Basket	Cast Aluminum Frame
Terminals	4 Ga Push Terminals
Gasket	Aluminum Gasket
Available Sizes	10", 12", 15", and 18"





RECOMMENDED ENCLOSURE SPECIFICATIONS

Internal Volume (Cubic Ft)	1.25 - 2 CU FT
Tuning Frequency	28 - 32 HERTZ
Port Area	12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT
Mounting Depth	8.25 INCHES
Cutout Diameter	9 7/16 INCHES
Displacement	0.17 CU FT
Outside Diameter	10 23/32 INCHES
