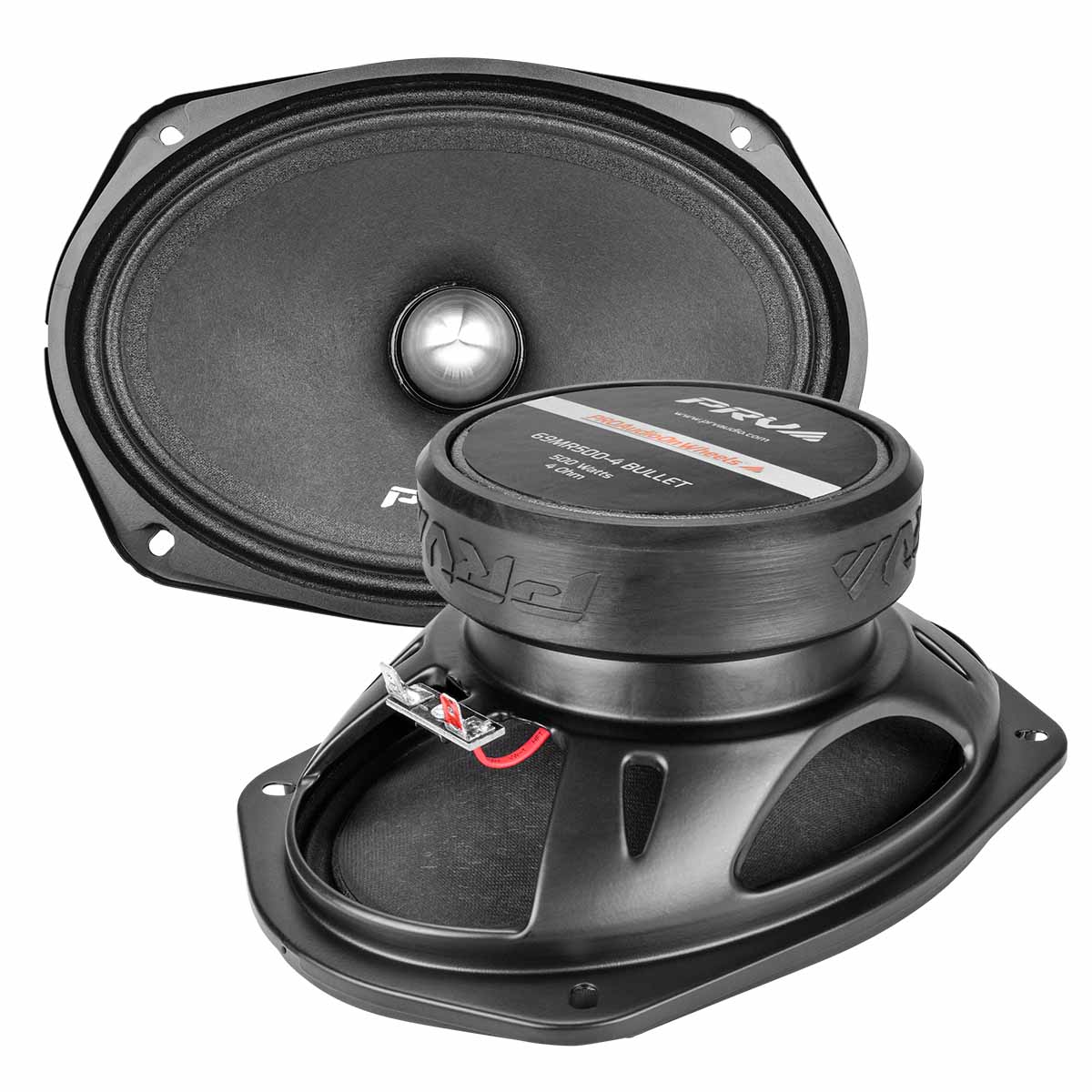

PRV Audio 69MR500-4 BULLET 6x9 6" x 9" 500W Midrange Car Pro Audio Speaker MID
HomeStore

PRV Audio 69MR500-4 BULLET 6x9 6" x 9" 500W Midrange Car Pro Audio Speaker MID

PRV Audio 69MR500-4 BULLET 6x9 6" x 9" 500W Midrange Car Pro Audio Speaker MID

$22.72

Original: $64.91

-65%
PRV Audio 69MR500-4 BULLET 6x9 6" x 9" 500W Midrange Car Pro Audio Speaker MID

$64.91

$22.72

The Story

Featuring an Aluminum Phase Plug (Bullet), this mid is built like a professional mid range loudspeaker, but it has been designed for use in the mobile audio market! By combining elements from PRO Audio and Car Audio, we have developed a NEW type of high efficient mid range that is able to give high levels of output for your custom door or rear deck.

Highlights

  • Built to Perform at Wide Frequency Range: 150 – 12,500 Hz
  • Highest Quality Speaker with bullet design available
  • High efficiency: 96 dB guarantees High Output Levels
  • Handles 500 Watts – Endurance at Loudest Volumes
  • Vented Air pole piece for heat dissipation
  • Center phase plug for even sound distribution
  • 4 Ohms Impedance

The “bullet” phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.

A triple roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speaker’s frequency response is smooth and extends to high range making an easy transition to a super tweeter, but according to customers, the high-frequency response from this speaker does NOT need support from a tweeter!

The suspension design of this mid range features a single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.

Its high-performance characteristics and high-quality components provide exceptional clarity, detail, and dynamics sound. You can expect outstanding sound stage quality and realistic sound reproduction for a great value. This is the new standard of value in high-performance bullet speakers.

GENERAL SPECIFICATIONS

Nominal Diameter 6×9″ (152 x 228 mm)
Nominal impedance 4 Ohm
Nominal Power Handling* 250 Watts
Continuous Program Power (RMS)** 500 Watts
Max Peak Power*** 1000 Watts
Sensitivity 2.00V at 1m 96 dB
Recommended Hi Pass Crossover For Full Power Handling 145 Hz 12db Per Octave Crossover
Frequency Response 150 – 12,500 Hz
Voice Coil Diameter 1.5″ (38 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 9.5 mm
Former Material Kapton
Magnetic Gap Depth 6.0 mm
Frame Material

Stamped Steel

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 5.21 l
Excursion(mathematical)*** Xmax 3.25 mm
Free Air Resonance Fs 148.9  Hz
Mechanical Factor Qms 16.80
Electrical Factor Qes 1.20
Total Factor Qts 1.12
Cone Area Sd 216 cm²
Mechanical Mass Mms 13.11 g
Bl Factor Bl 5.86 Tm
Dc Resistance Re 3.3 Ohms
Inductance Le 0.130 mH at 1 kHz
Mechanical Mass Without Air Mmd 9.31 g
Mechanical Compliance Cms

0.080 mm/N

EXTRA INFO

Overall Diameter 6.43″ x 9.29′ (163.5 x 236 mm)
Front Mount Baffle Cutout 5.78″ x 8.60″ (150 x 218.5 mm)
Mounting Depth 3.48″ (88.5 mm)
Overall Depth 3.85″ (98 mm)
Net Weight 4.4 Lbs (2.00 kg) unit
Shipping Weight 4.62 Lbs (2.10 kg)
Carton Dimensions W x L x H 8.66″ x 7.48″ x 4.33″ (220 x 190 x 110 mm)

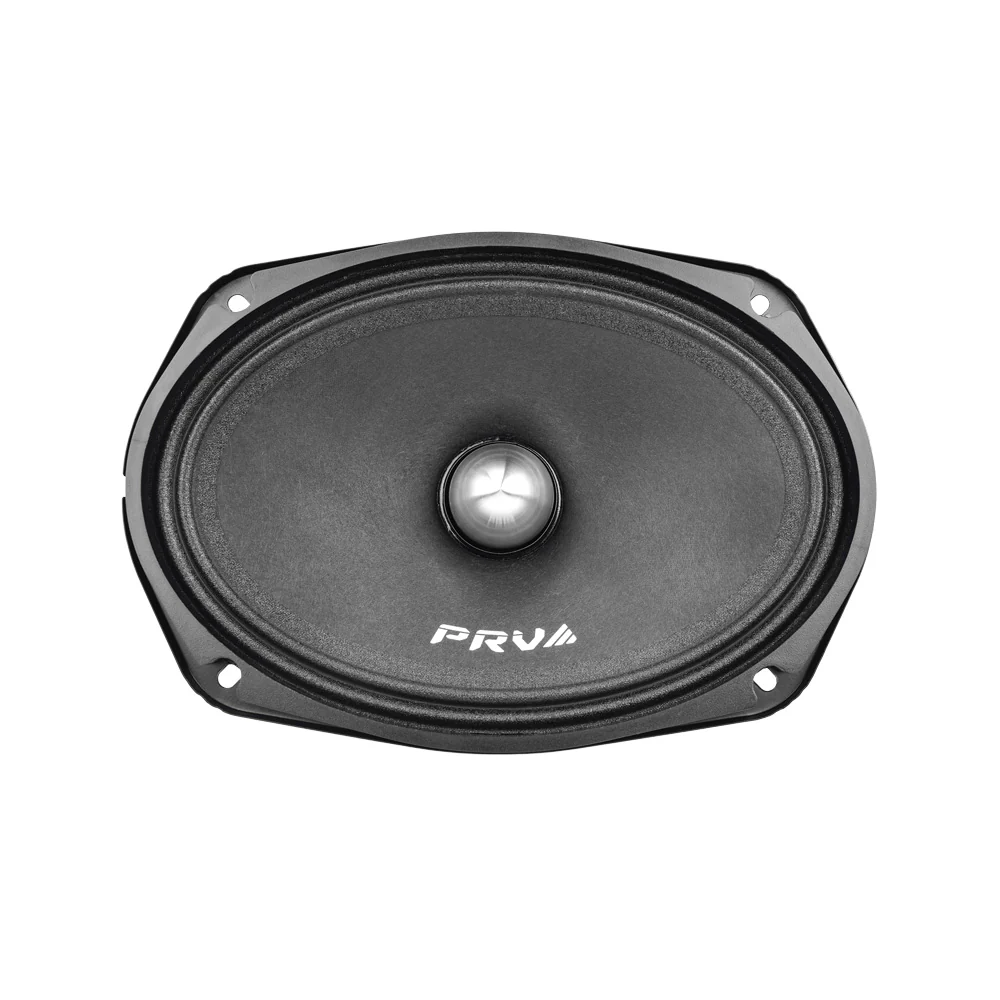

PRV Audio 69MR500-4 BULLET 6x9 6" x 9" 500W Midrange Car Pro Audio Speaker MID - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

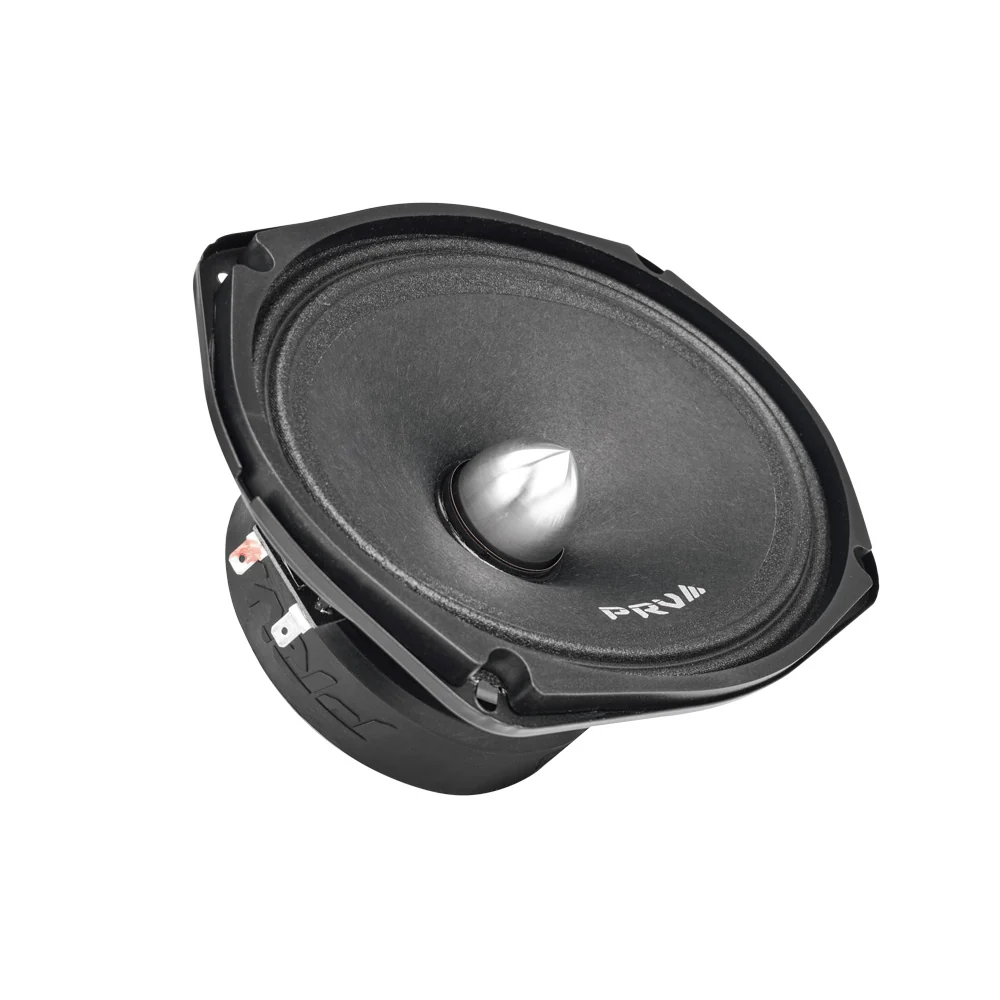

PRV Audio 69MR500-4 BULLET 6x9 6" x 9" 500W Midrange Car Pro Audio Speaker MID - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

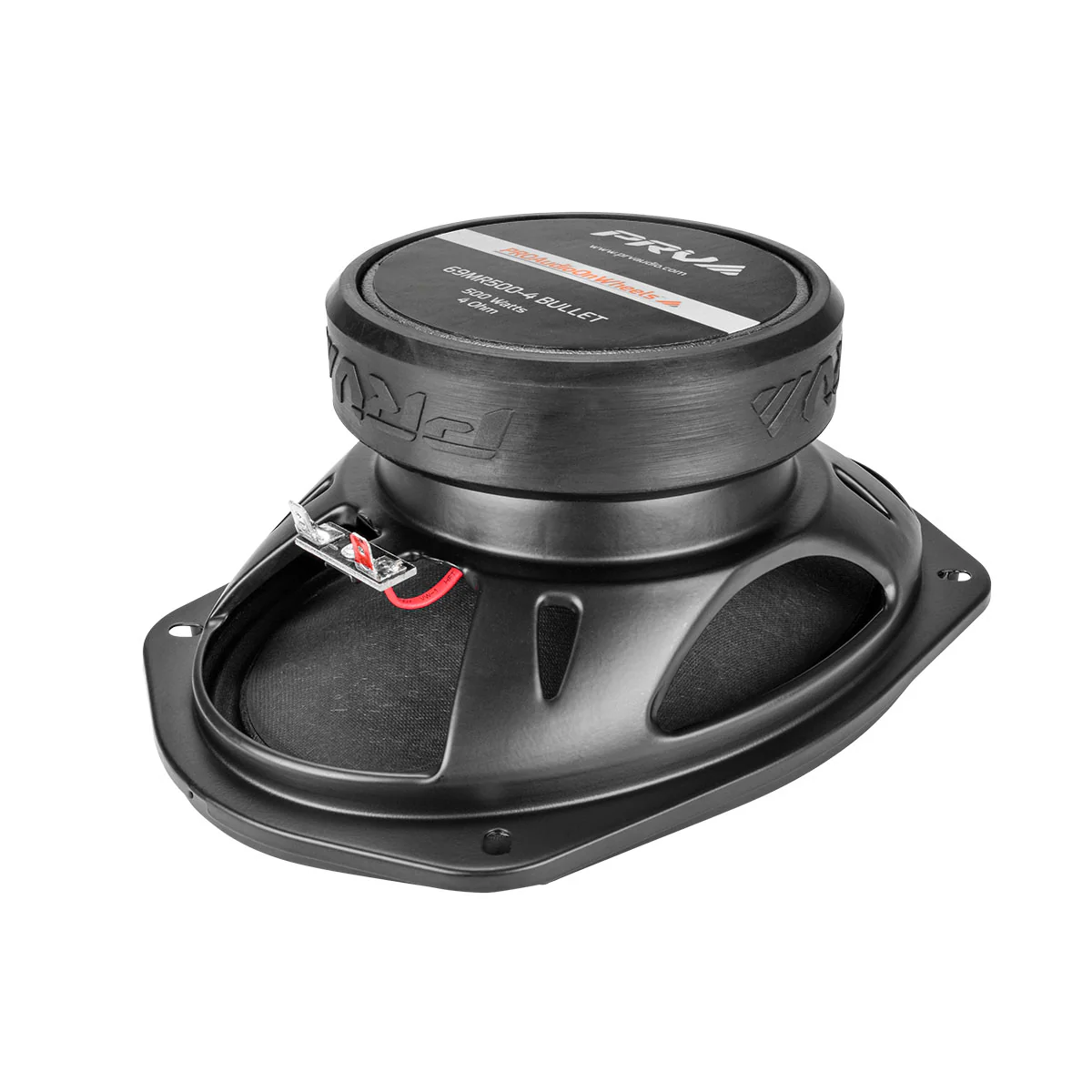

PRV Audio 69MR500-4 BULLET 6x9 6" x 9" 500W Midrange Car Pro Audio Speaker MID - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Featuring an Aluminum Phase Plug (Bullet), this mid is built like a professional mid range loudspeaker, but it has been designed for use in the mobile audio market! By combining elements from PRO Audio and Car Audio, we have developed a NEW type of high efficient mid range that is able to give high levels of output for your custom door or rear deck.

Highlights

  • Built to Perform at Wide Frequency Range: 150 – 12,500 Hz
  • Highest Quality Speaker with bullet design available
  • High efficiency: 96 dB guarantees High Output Levels
  • Handles 500 Watts – Endurance at Loudest Volumes
  • Vented Air pole piece for heat dissipation
  • Center phase plug for even sound distribution
  • 4 Ohms Impedance

The “bullet” phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.

A triple roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speaker’s frequency response is smooth and extends to high range making an easy transition to a super tweeter, but according to customers, the high-frequency response from this speaker does NOT need support from a tweeter!

The suspension design of this mid range features a single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.

Its high-performance characteristics and high-quality components provide exceptional clarity, detail, and dynamics sound. You can expect outstanding sound stage quality and realistic sound reproduction for a great value. This is the new standard of value in high-performance bullet speakers.

GENERAL SPECIFICATIONS

Nominal Diameter 6×9″ (152 x 228 mm)
Nominal impedance 4 Ohm
Nominal Power Handling* 250 Watts
Continuous Program Power (RMS)** 500 Watts
Max Peak Power*** 1000 Watts
Sensitivity 2.00V at 1m 96 dB
Recommended Hi Pass Crossover For Full Power Handling 145 Hz 12db Per Octave Crossover
Frequency Response 150 – 12,500 Hz
Voice Coil Diameter 1.5″ (38 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 9.5 mm
Former Material Kapton
Magnetic Gap Depth 6.0 mm
Frame Material

Stamped Steel

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 5.21 l
Excursion(mathematical)*** Xmax 3.25 mm
Free Air Resonance Fs 148.9  Hz
Mechanical Factor Qms 16.80
Electrical Factor Qes 1.20
Total Factor Qts 1.12
Cone Area Sd 216 cm²
Mechanical Mass Mms 13.11 g
Bl Factor Bl 5.86 Tm
Dc Resistance Re 3.3 Ohms
Inductance Le 0.130 mH at 1 kHz
Mechanical Mass Without Air Mmd 9.31 g
Mechanical Compliance Cms

0.080 mm/N

EXTRA INFO

Overall Diameter 6.43″ x 9.29′ (163.5 x 236 mm)
Front Mount Baffle Cutout 5.78″ x 8.60″ (150 x 218.5 mm)
Mounting Depth 3.48″ (88.5 mm)
Overall Depth 3.85″ (98 mm)
Net Weight 4.4 Lbs (2.00 kg) unit
Shipping Weight 4.62 Lbs (2.10 kg)
Carton Dimensions W x L x H 8.66″ x 7.48″ x 4.33″ (220 x 190 x 110 mm)
