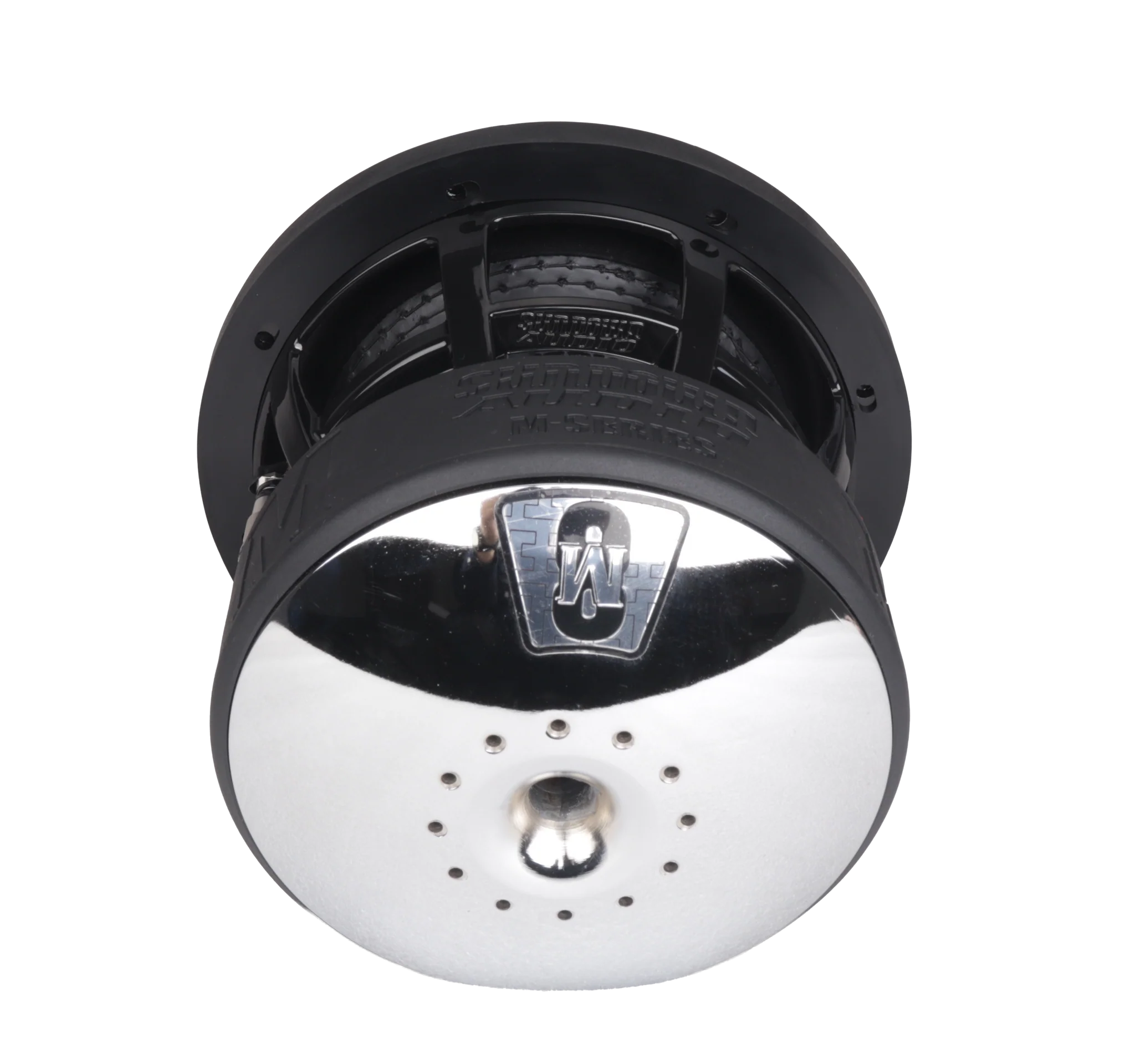

M-Series M8 1600W Subwoofer

• 800W Watts RMS / 1600 Watts Peak
• Dual 2 or 4 ohm voice coils
• Optimized for small ported enclosures
• Aluminum 2.25” voice coil former for superior heat dissipation
• High-temperature copper voice coil wire
• Double stitched surround
• Carbon Fiber Cone & Dust Cap
• Heavy-duty cast basket
• Spring-loaded terminals accept up to 8-gauge wire
• Stitched-on heavy-duty tinsel leads
• High-Veloctiy Vented Pole
• Rear gap-venting
• 18mm one-way linear x-max by 70% BL

The Sundown Audio M-8 is the big brother to the SA-8 v.3 model. Both the coil diameter and winding width are increased in comparison, resulting in higher power handling and more linear x-max. It features a Mid-Q which results in excellent vented and bandpass performance.

The specially designed motor is mated to a custom tooled and patented (US Patent D691595) frame. The smooth one-piece T-Yoke was FEA optimized for optimal flux transmission. The M-8 features a fully computer optimized spider & surround designed for low distortion and high levels of long-term endurance under demanding conditions. It features a thick magnet ID shorting ring to linearize and reduce inductance – thus reducing distortion even further. Every detail was engineered for phenomenal performance and pleasing aesthetics.
